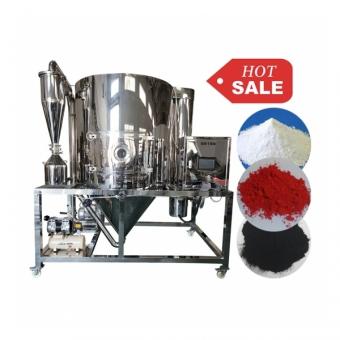

Laboratory Pilot Small Scale Spray Dryer Description                                                                                           The spray drying machine is mainly suitable for the production of micro particle powder in laboratories of universities, research institutes and food pharmaceutical and chemical enterprises, and is widely applicable to all solutions, such as emulsion and suspension. It is suitable for drying of heat sensitive substances, such as biological products, biological pesticides, enzyme preparations, etc. Because the material is only sprayed into a fog when the high temperature and instantaneous heating, so these active materials still maintain its active.ingredients after drying. Parameters                                                                                          Name spray drying machine Inlet air temperature control ≤30-300 °C. Outlet air temperature control <30 ~ 150 °C. Maximum evaporation of water 200-10L/h. Centrifugal spray head transmission form Electric. Speed 40,000 rpm Spray disc diameter 80mm Heat source Electricity Electric heating maximum power 18kw Total power 22kw Dimensions L*W*H(mm) 2500*1600*2800 Dry powder recovery ≥98% Configuration List                                                                                 S.N. Name Specification Material Quantity 1 spray drying machine 2500*1600*2800 Stainless steel 1 2 Tower body Φ1400*2600 Stainless steel 1 3 Centrifugal nozzle atomizer Φ80 10kg per hour Stainless steel 1 4 Air compressor / vibrating air hammer Matching Stainless steel 2 5 Cyclone separator Φ300 Stainless steel 1 6 Peristaltic pump 30-100L/h-0.55kw Stainless steel 1 7 Induced draft fan 4kw Q235A steel 1 8 Electric heaters 18kw Stainless steel 1 9 air filter Matching Sainless steel 1 10 Electrical control box PLC Stainless steel 1 11 Inlet and out wind temperature detector Matching Stainless steel 2 12 Air duct Matching Stainless steel 1 13 Receiving cylinder 10L stainless steel 1 14 Cylinder insulation 50mm Insulation cotton   15 support 60*60mm Stainless steel 1 Multiple Application Areas                                                                    The spray dryer is suitable for: Beverages, spices and colors, milk, egg products, plant and vegetable extracts, pharmaceutically synthesized thermosensitive plastics, polymers and resins, aromatics, blood products, ceramics and superconducting biochemical products, dye soaps and detergents, food, adhesives, oxides, bone meal and tooth powder, etc. The equipment uses the principle of water evaporation to remove the solvent contained in the solution. In particular, it is suitable for the powder preparation industry of most heat sensitive materials. The equipment is equipped with a bag type dust collector, which is safe, environmental protection and reliable. Details Image
